Ekahau Spectrum Analyzer

  • Ekahau Spectrum Analyzer

    Wi-Fi Spectrum Analyzer with Site Survey Integration

    Discover and minimize interference without extra effort

    Ekahau Spectrum Analyzer site survey integration
    Cordless phones, microwave ovens, wireless motion detectors and video cameras typically operate within the same 2.4 GHz and 5 GHz frequency spectrum as Wi-Fi devices. Interference is one of the primary contributors to degraded Wi-Fi performance and reliability, causing flaky connections, dropped VoIP calls, and grumpy Wi-Fi users.

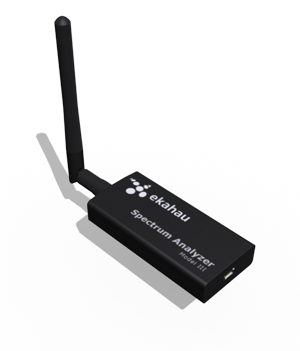

    Ekahau Spectrum Analyzer is an accurate and easy to use USB device. It’s a great addition to any Wi-Fi administrator, engineer or experts portfolio – without a spectrum analyzer, many Wi-Fi issues will remain unseen.

    Ekahau Spectrum Analyzer fully integrates with Ekahau Site Survey: While performing a wireless site survey, spectrum analysis is performed simultaneously with active and passive surveys. No extra effort is required for gathering spectrum data, and no pre-configuration is needed. Ekahau Spectrum Analyzer is ready to go. Simply contact your SpectroTech within Australia or New Zealand and we’ll get you set up.

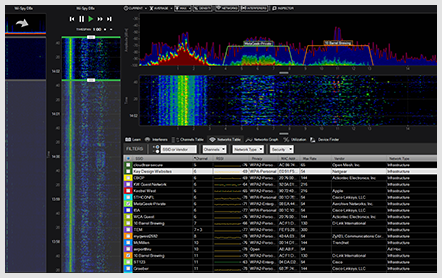

    Ekahau Site Survey also includes powerful on-the-spot and post-survey Wi-Fi analysis capabilities. It combines both Wi-Fi and spectrum information into easy-to-read displays. Finding root causes for Wi-Fi problems has never been easier, or faster.

    In addition to Ekahau Site Survey interoperability, the Spectrum Analyzer also comes with a stand-alone, on-the-spot troubleshooting application for in-depth spectrum analysis.

    Download Spectrum Analyzer datasheet »



    Click To Receive a Quote


  • Ekahau Wi-Fi Spectrum Analyzer Features

    The Ekahau Wi-Fi Spectrum Analyzer for 802.11ac and 802.11n combines a boatload of features with ease of use.

    Ekahau Spectrum Analysis

    • Dual-band (2.4 and 5 GHz support)
      • Two units required for simultaneous dual-band
    • Full Ekahau Site Survey integration
    • Discover and locate non-Wi-Fi interference sources, such as:
      • Microwave ovens
      • Cordless phones
      • Wireless video cameras
      • Bluetooth
      • Zigbee (802.15.4)
      • Broken Wi-Fi devices
    • Support for 802.11ac, 802.11n, 802.11a/b/g
    • Analyze interference and network utilization variation over time
    • Investigate the impact of interference
    • Save captured data for later analysis


    Click To Receive a Quote


  • Spectrum Analyzer Specifications

    Ekahau Spectrum Anzlyzer

    General

    • Ekahau Site Survey Pro required to access site survey features and Real-Time Frequency Monitor
      • On-the-spot troubleshooting software provided with Spectrum Analyzer
    • Interface: USB
    • Antenna: External, RP-SMA
    • Amplitude Range: -100 dBm to -6.5 dBm
    • Amplitude Resolution: 0.5 dBm

    System Requirements

    • Windows 8, 7, 10, Vista, XP, 2000
    • USB 1.1 or 2.0
    • 1024 x 768 Screen Resolution or Greater

    2.4GHz Radio Specifications

    • Frequency Range: 2.400 to 2.495 GHz
    • Frequency Resolution: 26 KHz to 3 MHz
    • Resolution Bandwidth: 58.036 to 812.500 KHz

    5GHz Radio Specifications

    • Frequency Range: 5.150 to 5.850 GHz
    • Frequency Resolution: 24 KHz to 3 MHz
    • Resolution Bandwidth: 53.571 to 750.00 KHz


    Click To Receive a Quote
